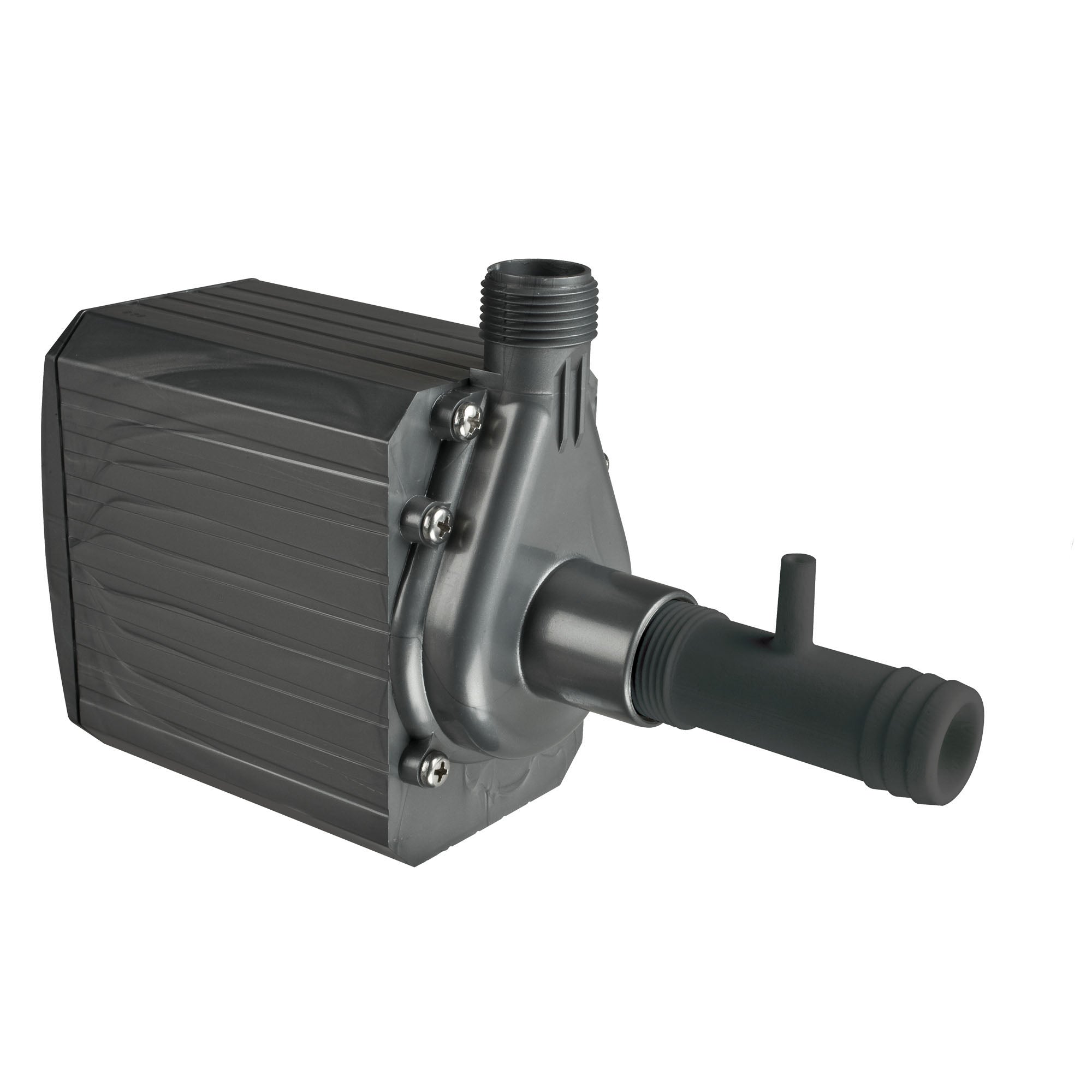

SUPREME HYDRO-MAG® 190 to 3600 SERIES PUMPS operate in-line or submerged, with quiet, efficient and reliable 24/7 performance.
Models 2 through 18 feature an adjustable venturi which adds aeration into nutrient rich water flow, stimulating root growth and an epoxy encased power unit ensuring that water never gets contaminated with harmful oils or chemicals.
@@@@@@
Product Features
• Models 2 through 18 incorporate an adjustable Venturi which adds Aeration into the nutrient rich water flow, stimulating root growth.
• 10’ Power Cord on all models
• Time proven Magnetic Drive Technology
• Energy efficient and Oil-Free
• In-line or Submersible Operation
• Models 2 through 7 include: 1/2” Barb x 1/2" NPT Fitting
• Models 9.5 through 18 include: 1/2” Barb x 3/4" NPT Fitting
• Models 24 and 36 include 1” Male NPT Outlet
• 5-Year Limited Warranty
@@@@@@
Specifications
Model 1.9 ITEM# 40120 Maximum Flow Rate 190 GPH Watts/Amps 19/0.3 3/8” MPT Inlet and 1/4” MPT Outlet |
Model 2 with Venturi ITEM# 40122 Maximum Flow Rate 250 GPH Watts/Amps 24/0.4 1/2” FPT Inlet and MPT Outlet |
Model 3 with Venturi ITEM# 40123 Maximum Flow Rate 350 GPH Watts/Amps 35/0.6 1/2” FPT Inlet and MPT Outlet |
Model 5 with Venturi ITEM# 40125 Maximum Flow Rate 500 GPH Watts/Amps 45/0.9 1/2” FPT Inlet and MPT Outlet |
Model 7 with Venturi ITEM# 40127 Maximum Flow Rate 700 GPH Watts/Amps 70/1.6 1/2” FPT Inlet and MPT Outlet |
Model 9.5 with Venturi ITEM# 40129 Maximum Flow Rate 950 GPH Watts/Amps 93/1.33 3/4” FPT Inlet and MPT Outlet |
Model 12 with Venturi ITEM# 40132 Maximum Flow Rate 1200 GPH Watts/Amps 110/1.5 3/4” FPT Inlet and MPT Outlet |
Model 18 with Venturi ITEM# 40138 Maximum Flow Rate 1800 GPH Watts/Amps 145/1.55 3/4” FPT Inlet and MPT Outlet |
Model 24 ITEM# 40140 Maximum Flow Rate 2400 GPH Watts/Amps 237/2.2 1” FPT Inlet and MPT Outlet Dimensions: 7.25" x 4.0" x 6" |
Model 36 ITEM# 40145 Maximum Flow Rate 3100 GPH Watts/Amps 256/3.0 1” FPT Inlet and MPT Outlet Dimensions: 7.25" x 4.0" x 6" |
RECIRCULATING WATER & AIR PUMP SPECIFICATIONS | ||||||||
PUMP | SHUT OFF | FLOOD TABLE SIZES | ||||||
2x2 | 2x3 | 2x4 | 3x3 | 3x6 | 4x4 | 8x4 | ||
190 GPH | 7’ | x |
|
|
|
|
|
|
250 GPH | 7’ | x | x |
|
|
|
|
|
350 GPH | 10.5’ |
| x | x |
|
|
|
|
500 GPH | 10.5’ |
|
| x | x |
|
|
|
700 GPH | 11.5’ |
|
| x | x |
|
|
|
950 GPH | 13.5’ |
|
|
|
| x | x |
|
1200 GPH | 13.5’ |
|
|
|
| x | x | x |
1800 GPH | 16.5’ |
|
|
|
|
|
| x |
2400 GPH | 17’ |
|
|
|
|
|
| x |
3600 GPH | 22.5’ |
|
|
|
|
|
| x |
Shut off is the maximum vertical height the pump will pump water.
To calculate the pressure (psi), multiply the shut off by .454.
@@@@@@
Manuals
( 3.35 MB)
( 3.48 MB)
( 0.89 MB)
( 1.53 MB)
( 0.61 MB)
( 1.43 MB)
@@@@@@
@@@@@@
Replacement Part
- RIGID PRE-FILTER For 250 GPH, 350 GPH, 500 GPH AND 700 GPH PUMPS (RIGID PRE-FILTER)
- COMPACT RIGID PREFILTER FOR MAG-DRIVE PUMPS MODELS 250-700 GPH PUMPS
- 1/2" Adjustable 3-Way Diverter Valve
- Replacement Pump Cover/Volute Threaded Intake for 250GPH and 350GPH Pumps
- Replacement Impeller for Model 2 02512, 02522 or 40122
- VENTURI ASSM W/TUBING & MUFFLER - MODELS 2 TO 7
- Replacement Impeller for Model 3 & Model 5 (Replacement Impeller for Model 3 & Model 5)
- Replacement Pump Cover/Volute for Model 5 and Model 7 Mag Drive Pumps (Replacement Pump Cover/Volute for Model 5 and Model 7 Mag Drive Pumps)
- Replacement Impeller for Model 7 02517, 02527 or 40127
- Replacement Impeller for Model 9.5B 02710, 02720 or 40129
- FOAM PRE-FILTER For 950 GPH, 1200 GPH and 1800 GPH Pumps (FOAM PRE-FILTER)
- Replacement Pump Cover/Volute for Mag-Drive Pumps Model 9.5A or 9.5B
- 3/4" Adjustable 3-Way Diverter Valve (3/4)
- VENTURI ASSM W/TUBING & MUFFLER - MODELS 9.5 TO 18
- Replacement Impeller for Model 12B 02712, 02722 or 40132
- Replacement Pump Cover/Volute for Model 12B
- Replacement Impeller for Model 18B 02718, 02728 or 40138
- Rigid Pre-Filter w/ Bushing For Mag-Drive 950-3600 GPH Pumps
- Replacement Pump Cover/Volute for Model 24 and Model 36 Mag Drive Pumps (Replacement Pump Cover/Volute for Model 24 and Model 36 Mag Drive Pumps)
- Impeller Assembly for Model 24B Mag Drive Pumps (B Models) (Impeller Assembly for Model 24B Mag Drive Pumps (B Models))
- Impeller Assembly for Model 36B Mag Drive Pumps (B Models) (Impeller Assembly for Model 36B Mag Drive Pumps (B Models))
